AMBRO 01-P LED 2300LM 23W 740 DIM OP
Mounting type: On poles
Type of Equipment: Adjustable, Eco-Friendly Products, Electronic driver, High-Performance
Light Distribution: Direct distribution
Lamp Type: LED module
Light Power: From 20 to 100
Number of Lamps: LED Module
Protection Rating: IP66

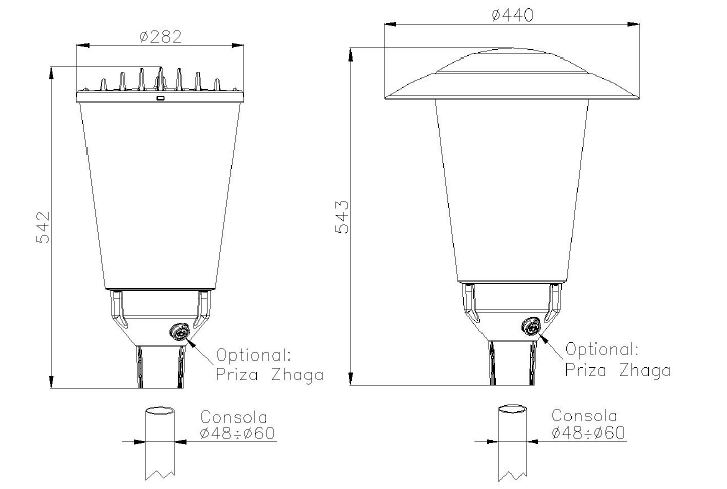

Tip produs |
D [mm] |
h [mm] |
m [mm] |
AMBRO 01 LED |
Ф440 |
543 |
Фexterior 48–60 |
Technical Specifications
- Power Supply Voltage: 230V/50Hz
- Ambient Temperature Range: -40˚C to +50˚C
- Relative Humidity: Up to 80% at +20˚C
- Shock Resistance: 1000 ±10 shocks, 10g acceleration, impulse duration: 16ms, compliant with SR EN 60068-2-29
- Mechanical Impact Resistance: IK10
- Radio Interference Levels: Does not exceed the limits specified in SR EN 55015+A1
- Standards Compliance for Lighting Fixtures: SR EN 60598-1, SR EN 60598-2-1
Optional Features
- Available in other RAL colors
- Version equipped with a standardized Zhaga Socket for remote control and DALI2 flux regulation (allows dimming in 1% to 90% steps)
Installation
- Mounted on poles with diameters Ø48… Ø60mm, secured with six screws
Compliance with European Directives
- Low Voltage Directive
- Electromagnetic Compatibility Directive
- RoHS Directive
- WEEE Directive
Light Distribution

- General info
- Technical Info
- Photometric Data
- Files
AMBRO 01-P LED 5700LM 37W 740 TP3 DIM
Mounting type: On poles
Type of Equipment: Adjustable, Eco-Friendly Products, Electronic driver, High-Performance
Light Distribution: Direct distribution
Lamp Type: LED module
Light Power: From 20 to 100
Number of Lamps: LED Module
Protection Rating: IP66
Tip produs |
D [mm] |
h [mm] |
m [mm] |
AMBRO 01 LED |
Ф440 |
543 |
Фexterior 48–60 |
Technical Specifications
- Power Supply Voltage: 230V/50Hz
- Ambient Temperature Range: -40˚C to +50˚C
- Relative Humidity: Up to 80% at +20˚C
- Shock Resistance: 1000 ±10 shocks, 10g acceleration, impulse duration: 16ms, compliant with SR EN 60068-2-29
- Mechanical Impact Resistance: IK10
- Radio Interference Levels: Does not exceed the limits specified in SR EN 55015+A1
- Standards Compliance for Lighting Fixtures: SR EN 60598-1, SR EN 60598-2-1
Optional Features
- Available in other RAL colors
- Version equipped with a standardized Zhaga Socket for remote control and DALI2 flux regulation (allows dimming in 1% to 90% steps)
Installation
- Mounted on poles with diameters Ø48… Ø60mm, secured with six screws
Compliance with European Directives
- Low Voltage Directive
- Electromagnetic Compatibility Directive
- RoHS Directive
- WEEE Directive
Light Distribution

- General info
- Technical Info
- Photometric Data
- Files
AMBRO 01-P LED 8300LM 52W 740 TP3 DIM
Mounting type: On poles
Type of Equipment: Adjustable, Eco-Friendly Products, Electronic driver, High-Performance
Light Distribution: Direct distribution
Lamp Type: LED module
Light Power: From 20 to 100
Number of Lamps: LED Module
Protection Rating: IP66
Tip produs |
D [mm] |
h [mm] |
m [mm] |
AMBRO 01 LED |
Ф440 |
543 |
Фexterior 48–60 |
Technical Specifications
- Power Supply Voltage: 230V/50Hz
- Ambient Temperature Range: -40˚C to +50˚C
- Relative Humidity: Up to 80% at +20˚C
- Shock Resistance: 1000 ±10 shocks, 10g acceleration, impulse duration: 16ms, compliant with SR EN 60068-2-29
- Mechanical Impact Resistance: IK10
- Radio Interference Levels: Does not exceed the limits specified in SR EN 55015+A1
- Standards Compliance for Lighting Fixtures: SR EN 60598-1, SR EN 60598-2-1
Optional Features
- Available in other RAL colors
- Version equipped with a standardized Zhaga Socket for remote control and DALI2 flux regulation (allows dimming in 1% to 90% steps)
Installation
- Mounted on poles with diameters Ø48… Ø60mm, secured with six screws
Compliance with European Directives
- Low Voltage Directive
- Electromagnetic Compatibility Directive
- RoHS Directive
- WEEE Directive
Light Distribution

- General info
- Technical Info
- Photometric Data
- Files
AMBRO 01-P LED 3500LM 23W 740 TP3 Z
Mounting type: On poles
Type of Equipment: Adjustable, Eco-Friendly Products, Electronic driver, High-Performance
Light Distribution: Direct distribution
Lamp Type: LED module
Light Power: From 20 to 100
Number of Lamps: LED Module
Protection Rating: IP66
Tip produs |
D [mm] |
h [mm] |
m [mm] |
AMBRO 01 LED |
Ф440 |
543 |
Фexterior 48–60 |
Technical Specifications
- Power Supply Voltage: 230V/50Hz
- Ambient Temperature Range: -40˚C to +50˚C
- Relative Humidity: Up to 80% at +20˚C
- Shock Resistance: 1000 ±10 shocks, 10g acceleration, impulse duration: 16ms, compliant with SR EN 60068-2-29
- Mechanical Impact Resistance: IK10
- Radio Interference Levels: Does not exceed the limits specified in SR EN 55015+A1
- Standards Compliance for Lighting Fixtures: SR EN 60598-1, SR EN 60598-2-1
Optional Features
- Available in other RAL colors
- Version equipped with a standardized Zhaga Socket for remote control and DALI2 flux regulation (allows dimming in 1% to 90% steps)
Installation
- Mounted on poles with diameters Ø48… Ø60mm, secured with six screws
Compliance with European Directives
- Low Voltage Directive
- Electromagnetic Compatibility Directive
- RoHS Directive
- WEEE Directive
Light Distribution

- General info
- Technical Info
- Photometric Data
- Files
AMBRO 01-P LED 5700LM 37W 740 TP3 Z
Mounting type: On poles
Type of Equipment: Adjustable, Eco-Friendly Products, Electronic driver, High-Performance
Light Distribution: Direct distribution
Lamp Type: LED module
Light Power: From 20 to 100
Number of Lamps: LED Module
Protection Rating: IP66
Tip produs |
D [mm] |
h [mm] |
m [mm] |
AMBRO 01 LED |
Ф440 |
543 |
Фexterior 48–60 |
Technical Specifications
- Power Supply Voltage: 230V/50Hz
- Ambient Temperature Range: -40˚C to +50˚C
- Relative Humidity: Up to 80% at +20˚C
- Shock Resistance: 1000 ±10 shocks, 10g acceleration, impulse duration: 16ms, compliant with SR EN 60068-2-29
- Mechanical Impact Resistance: IK10
- Radio Interference Levels: Does not exceed the limits specified in SR EN 55015+A1
- Standards Compliance for Lighting Fixtures: SR EN 60598-1, SR EN 60598-2-1
Optional Features
- Available in other RAL colors
- Version equipped with a standardized Zhaga Socket for remote control and DALI2 flux regulation (allows dimming in 1% to 90% steps)
Installation
- Mounted on poles with diameters Ø48… Ø60mm, secured with six screws
Compliance with European Directives
- Low Voltage Directive
- Electromagnetic Compatibility Directive
- RoHS Directive
- WEEE Directive
Light Distribution

- General info
- Technical Info
- Photometric Data
- Files
AMBRO 01-P LED 8300LM 52W 740 TP3 Z
Mounting type: On poles
Type of Equipment: Adjustable, Eco-Friendly Products, Electronic driver, High-Performance
Light Distribution: Direct distribution
Lamp Type: LED module
Light Power: From 20 to 100
Number of Lamps: LED Module
Protection Rating: IP66
Tip produs |
D [mm] |
h [mm] |
m [mm] |
AMBRO 01 LED |
Ф440 |
543 |
Фexterior 48–60 |
Technical Specifications
- Power Supply Voltage: 230V/50Hz
- Ambient Temperature Range: -40˚C to +50˚C
- Relative Humidity: Up to 80% at +20˚C
- Shock Resistance: 1000 ±10 shocks, 10g acceleration, impulse duration: 16ms, compliant with SR EN 60068-2-29
- Mechanical Impact Resistance: IK10
- Radio Interference Levels: Does not exceed the limits specified in SR EN 55015+A1
- Standards Compliance for Lighting Fixtures: SR EN 60598-1, SR EN 60598-2-1
Optional Features
- Available in other RAL colors
- Version equipped with a standardized Zhaga Socket for remote control and DALI2 flux regulation (allows dimming in 1% to 90% steps)
Installation
- Mounted on poles with diameters Ø48… Ø60mm, secured with six screws
Compliance with European Directives
- Low Voltage Directive
- Electromagnetic Compatibility Directive
- RoHS Directive
- WEEE Directive
Light Distribution

- General info
- Technical Info
- Photometric Data
- Files
AMBRO 01-P LED 3500LM 23W 740 TP3
Mounting type: On poles
Type of Equipment: Adjustable, Eco-Friendly Products, Electronic driver, High-Performance
Light Distribution: Direct distribution
Lamp Type: LED module
Light Power: From 20 to 100
Number of Lamps: LED Module
Protection Rating: IP66
Tip produs |
D [mm] |
h [mm] |
m [mm] |
AMBRO 01 LED |
Ф440 |
543 |
Фexterior 48–60 |
Technical Specifications
- Power Supply Voltage: 230V/50Hz
- Ambient Temperature Range: -40˚C to +50˚C
- Relative Humidity: Up to 80% at +20˚C
- Shock Resistance: 1000 ±10 shocks, 10g acceleration, impulse duration: 16ms, compliant with SR EN 60068-2-29
- Mechanical Impact Resistance: IK10
- Radio Interference Levels: Does not exceed the limits specified in SR EN 55015+A1
- Standards Compliance for Lighting Fixtures: SR EN 60598-1, SR EN 60598-2-1
Optional Features
- Available in other RAL colors
- Version equipped with a standardized Zhaga Socket for remote control and DALI2 flux regulation (allows dimming in 1% to 90% steps)
Installation
- Mounted on poles with diameters Ø48… Ø60mm, secured with six screws
Compliance with European Directives
- Low Voltage Directive
- Electromagnetic Compatibility Directive
- RoHS Directive
- WEEE Directive
Light Distribution

- General info
- Technical Info
- Photometric Data
- Files
AMBRO 01-P LED 5700LM 37W 740 TP3
Mounting type: On poles
Type of Equipment: Adjustable, Eco-Friendly Products, Electronic driver, High-Performance
Light Distribution: Direct distribution
Lamp Type: LED module
Light Power: From 20 to 100
Number of Lamps: LED Module
Protection Rating: IP66
Tip produs |
D [mm] |
h [mm] |
m [mm] |
AMBRO 01 LED |
Ф440 |
543 |
Фexterior 48–60 |
Technical Specifications
- Power Supply Voltage: 230V/50Hz
- Ambient Temperature Range: -40˚C to +50˚C
- Relative Humidity: Up to 80% at +20˚C
- Shock Resistance: 1000 ±10 shocks, 10g acceleration, impulse duration: 16ms, compliant with SR EN 60068-2-29
- Mechanical Impact Resistance: IK10
- Radio Interference Levels: Does not exceed the limits specified in SR EN 55015+A1
- Standards Compliance for Lighting Fixtures: SR EN 60598-1, SR EN 60598-2-1
Optional Features
- Available in other RAL colors
- Version equipped with a standardized Zhaga Socket for remote control and DALI2 flux regulation (allows dimming in 1% to 90% steps)
Installation
- Mounted on poles with diameters Ø48… Ø60mm, secured with six screws
Compliance with European Directives
- Low Voltage Directive
- Electromagnetic Compatibility Directive
- RoHS Directive
- WEEE Directive
Light Distribution

- General info
- Technical Info
- Photometric Data
- Files
AMBRO 01-P LED 8300LM 52W 740 TP3
Mounting type: On poles
Type of Equipment: Adjustable, Eco-Friendly Products, Electronic driver, High-Performance
Light Distribution: Direct distribution
Lamp Type: LED module
Light Power: From 20 to 100
Number of Lamps: LED Module
Protection Rating: IP66
Tip produs |
D [mm] |
h [mm] |
m [mm] |
AMBRO 01 LED |
Ф440 |
543 |
Фexterior 48–60 |
Technical Specifications
- Power Supply Voltage: 230V/50Hz
- Ambient Temperature Range: -40˚C to +50˚C
- Relative Humidity: Up to 80% at +20˚C
- Shock Resistance: 1000 ±10 shocks, 10g acceleration, impulse duration: 16ms, compliant with SR EN 60068-2-29
- Mechanical Impact Resistance: IK10
- Radio Interference Levels: Does not exceed the limits specified in SR EN 55015+A1
- Standards Compliance for Lighting Fixtures: SR EN 60598-1, SR EN 60598-2-1
Optional Features
- Available in other RAL colors
- Version equipped with a standardized Zhaga Socket for remote control and DALI2 flux regulation (allows dimming in 1% to 90% steps)
Installation
- Mounted on poles with diameters Ø48… Ø60mm, secured with six screws
Compliance with European Directives
- Low Voltage Directive
- Electromagnetic Compatibility Directive
- RoHS Directive
- WEEE Directive
Light Distribution

- General info
- Technical Info
- Photometric Data
- Files
AMBRO 01-P LED 3500LM 23W 740 TP3 DIM
Mounting type: On poles
Type of Equipment: Adjustable, Eco-Friendly Products, Electronic driver, High-Performance
Light Distribution: Direct distribution
Lamp Type: LED module
Light Power: From 20 to 100
Number of Lamps: LED Module
Protection Rating: IP66
Tip produs |
D [mm] |
h [mm] |
m [mm] |
AMBRO 01 LED |
Ф440 |
543 |
Фexterior 48–60 |
Technical Specifications
- Power Supply Voltage: 230V/50Hz
- Ambient Temperature Range: -40˚C to +50˚C
- Relative Humidity: Up to 80% at +20˚C
- Shock Resistance: 1000 ±10 shocks, 10g acceleration, impulse duration: 16ms, compliant with SR EN 60068-2-29
- Mechanical Impact Resistance: IK10
- Radio Interference Levels: Does not exceed the limits specified in SR EN 55015+A1
- Standards Compliance for Lighting Fixtures: SR EN 60598-1, SR EN 60598-2-1
Optional Features
- Available in other RAL colors
- Version equipped with a standardized Zhaga Socket for remote control and DALI2 flux regulation (allows dimming in 1% to 90% steps)
Installation
- Mounted on poles with diameters Ø48… Ø60mm, secured with six screws
Compliance with European Directives
- Low Voltage Directive
- Electromagnetic Compatibility Directive
- RoHS Directive
- WEEE Directive
Light Distribution

- General info
- Technical Info
- Photometric Data
- Files
AMBRO 01-P LED 3700LM 37W 740 DIM OP
Mounting type: On poles
Type of Equipment: Adjustable, Eco-Friendly Products, Electronic driver, High-Performance
Light Distribution: Direct distribution
Lamp Type: LED module
Light Power: From 20 to 100
Number of Lamps: LED Module
Protection Rating: IP66
Tip produs |
D [mm] |
h [mm] |
m [mm] |
AMBRO 01 LED |
Ф440 |
543 |
Фexterior 48–60 |
Technical Specifications
- Power Supply Voltage: 230V/50Hz
- Ambient Temperature Range: -40˚C to +50˚C
- Relative Humidity: Up to 80% at +20˚C
- Shock Resistance: 1000 ±10 shocks, 10g acceleration, impulse duration: 16ms, compliant with SR EN 60068-2-29
- Mechanical Impact Resistance: IK10
- Radio Interference Levels: Does not exceed the limits specified in SR EN 55015+A1
- Standards Compliance for Lighting Fixtures: SR EN 60598-1, SR EN 60598-2-1
Optional Features
- Available in other RAL colors
- Version equipped with a standardized Zhaga Socket for remote control and DALI2 flux regulation (allows dimming in 1% to 90% steps)
Installation
- Mounted on poles with diameters Ø48… Ø60mm, secured with six screws
Compliance with European Directives
- Low Voltage Directive
- Electromagnetic Compatibility Directive
- RoHS Directive
- WEEE Directive
Light Distribution

- General info
- Technical Info
- Photometric Data
- Files
AMBRO 01-P LED 5700LM 52W 740 DIM OP
Mounting type: On poles
Type of Equipment: Adjustable, Eco-Friendly Products, Electronic driver, High-Performance
Light Distribution: Direct distribution
Lamp Type: LED module
Light Power: From 20 to 100
Number of Lamps: LED Module
Protection Rating: IP66
Tip produs |
D [mm] |
h [mm] |
m [mm] |
AMBRO 01 LED |
Ф440 |
543 |
Фexterior 48–60 |
Technical Specifications
- Power Supply Voltage: 230V/50Hz
- Ambient Temperature Range: -40˚C to +50˚C
- Relative Humidity: Up to 80% at +20˚C
- Shock Resistance: 1000 ±10 shocks, 10g acceleration, impulse duration: 16ms, compliant with SR EN 60068-2-29
- Mechanical Impact Resistance: IK10
- Radio Interference Levels: Does not exceed the limits specified in SR EN 55015+A1
- Standards Compliance for Lighting Fixtures: SR EN 60598-1, SR EN 60598-2-1
Optional Features
- Available in other RAL colors
- Version equipped with a standardized Zhaga Socket for remote control and DALI2 flux regulation (allows dimming in 1% to 90% steps)
Installation
- Mounted on poles with diameters Ø48… Ø60mm, secured with six screws
Compliance with European Directives
- Low Voltage Directive
- Electromagnetic Compatibility Directive
- RoHS Directive
- WEEE Directive
Light Distribution

- General info
- Technical Info
- Photometric Data
- Files
AMBRO 01-P LED 2300LM 23W 740 Z OP
Mounting type: On poles
Type of Equipment: Adjustable, Eco-Friendly Products, Electronic driver, High-Performance
Light Distribution: Direct distribution
Lamp Type: LED module
Light Power: From 20 to 100
Number of Lamps: LED Module
Protection Rating: IP66
Tip produs |
D [mm] |
h [mm] |
m [mm] |
AMBRO 01 LED |
Ф440 |
543 |
Фexterior 48–60 |
Technical Specifications
- Power Supply Voltage: 230V/50Hz
- Ambient Temperature Range: -40˚C to +50˚C
- Relative Humidity: Up to 80% at +20˚C
- Shock Resistance: 1000 ±10 shocks, 10g acceleration, impulse duration: 16ms, compliant with SR EN 60068-2-29
- Mechanical Impact Resistance: IK10
- Radio Interference Levels: Does not exceed the limits specified in SR EN 55015+A1
- Standards Compliance for Lighting Fixtures: SR EN 60598-1, SR EN 60598-2-1
Optional Features
- Available in other RAL colors
- Version equipped with a standardized Zhaga Socket for remote control and DALI2 flux regulation (allows dimming in 1% to 90% steps)
Installation
- Mounted on poles with diameters Ø48… Ø60mm, secured with six screws
Compliance with European Directives
- Low Voltage Directive
- Electromagnetic Compatibility Directive
- RoHS Directive
- WEEE Directive
Light Distribution

- General info
- Technical Info
- Photometric Data
- Files
AMBRO 01-P LED 3700LM 37W 740 Z OP
Mounting type: On poles
Type of Equipment: Adjustable, Eco-Friendly Products, Electronic driver, High-Performance
Light Distribution: Direct distribution
Lamp Type: LED module
Light Power: From 20 to 100
Number of Lamps: LED Module
Protection Rating: IP66
Tip produs |
D [mm] |
h [mm] |
m [mm] |
AMBRO 01 LED |
Ф440 |
543 |
Фexterior 48–60 |
Technical Specifications
- Power Supply Voltage: 230V/50Hz
- Ambient Temperature Range: -40˚C to +50˚C
- Relative Humidity: Up to 80% at +20˚C
- Shock Resistance: 1000 ±10 shocks, 10g acceleration, impulse duration: 16ms, compliant with SR EN 60068-2-29
- Mechanical Impact Resistance: IK10
- Radio Interference Levels: Does not exceed the limits specified in SR EN 55015+A1
- Standards Compliance for Lighting Fixtures: SR EN 60598-1, SR EN 60598-2-1
Optional Features
- Available in other RAL colors
- Version equipped with a standardized Zhaga Socket for remote control and DALI2 flux regulation (allows dimming in 1% to 90% steps)
Installation
- Mounted on poles with diameters Ø48… Ø60mm, secured with six screws
Compliance with European Directives
- Low Voltage Directive
- Electromagnetic Compatibility Directive
- RoHS Directive
- WEEE Directive
Light Distribution

- General info
- Technical Info
- Photometric Data
- Files
AMBRO 01-P LED 5700LM 52W 740 Z OP
Mounting type: On poles
Type of Equipment: Adjustable, Eco-Friendly Products, Electronic driver, High-Performance
Light Distribution: Direct distribution
Lamp Type: LED module
Light Power: From 20 to 100
Number of Lamps: LED Module
Protection Rating: IP66
Tip produs |
D [mm] |
h [mm] |
m [mm] |
AMBRO 01 LED |
Ф440 |
543 |
Фexterior 48–60 |
Technical Specifications
- Power Supply Voltage: 230V/50Hz
- Ambient Temperature Range: -40˚C to +50˚C
- Relative Humidity: Up to 80% at +20˚C
- Shock Resistance: 1000 ±10 shocks, 10g acceleration, impulse duration: 16ms, compliant with SR EN 60068-2-29
- Mechanical Impact Resistance: IK10
- Radio Interference Levels: Does not exceed the limits specified in SR EN 55015+A1
- Standards Compliance for Lighting Fixtures: SR EN 60598-1, SR EN 60598-2-1
Optional Features
- Available in other RAL colors
- Version equipped with a standardized Zhaga Socket for remote control and DALI2 flux regulation (allows dimming in 1% to 90% steps)
Installation
- Mounted on poles with diameters Ø48… Ø60mm, secured with six screws
Compliance with European Directives
- Low Voltage Directive
- Electromagnetic Compatibility Directive
- RoHS Directive
- WEEE Directive
Light Distribution

- General info
- Technical Info
- Photometric Data
- Files
AMBRO 01-P LED 2300LM 23W 740 OP
Mounting type: On poles
Type of Equipment: Adjustable, Eco-Friendly Products, Electronic driver, High-Performance
Light Distribution: Direct distribution
Lamp Type: LED module
Light Power: From 20 to 100
Number of Lamps: LED Module
Protection Rating: IP66
Tip produs |
D [mm] |
h [mm] |
m [mm] |
AMBRO 01 LED |
Ф440 |
543 |
Фexterior 48–60 |
Technical Specifications
- Power Supply Voltage: 230V/50Hz
- Ambient Temperature Range: -40˚C to +50˚C
- Relative Humidity: Up to 80% at +20˚C
- Shock Resistance: 1000 ±10 shocks, 10g acceleration, impulse duration: 16ms, compliant with SR EN 60068-2-29
- Mechanical Impact Resistance: IK10
- Radio Interference Levels: Does not exceed the limits specified in SR EN 55015+A1
- Standards Compliance for Lighting Fixtures: SR EN 60598-1, SR EN 60598-2-1
Optional Features
- Available in other RAL colors
- Version equipped with a standardized Zhaga Socket for remote control and DALI2 flux regulation (allows dimming in 1% to 90% steps)
Installation
- Mounted on poles with diameters Ø48… Ø60mm, secured with six screws
Compliance with European Directives
- Low Voltage Directive
- Electromagnetic Compatibility Directive
- RoHS Directive
- WEEE Directive
Light Distribution

- General info
- Technical Info
- Photometric Data
- Files
AMBRO 01-P LED 3700LM 37W 740 OP
Mounting type: On poles
Type of Equipment: Adjustable, Eco-Friendly Products, Electronic driver, High-Performance
Light Distribution: Direct distribution
Lamp Type: LED module
Light Power: From 20 to 100
Number of Lamps: LED Module
Protection Rating: IP66
Tip produs |
D [mm] |
h [mm] |
m [mm] |
AMBRO 01 LED |
Ф440 |
543 |
Фexterior 48–60 |
Technical Specifications
- Power Supply Voltage: 230V/50Hz
- Ambient Temperature Range: -40˚C to +50˚C
- Relative Humidity: Up to 80% at +20˚C
- Shock Resistance: 1000 ±10 shocks, 10g acceleration, impulse duration: 16ms, compliant with SR EN 60068-2-29
- Mechanical Impact Resistance: IK10
- Radio Interference Levels: Does not exceed the limits specified in SR EN 55015+A1
- Standards Compliance for Lighting Fixtures: SR EN 60598-1, SR EN 60598-2-1
Optional Features
- Available in other RAL colors
- Version equipped with a standardized Zhaga Socket for remote control and DALI2 flux regulation (allows dimming in 1% to 90% steps)
Installation
- Mounted on poles with diameters Ø48… Ø60mm, secured with six screws
Compliance with European Directives
- Low Voltage Directive
- Electromagnetic Compatibility Directive
- RoHS Directive
- WEEE Directive
Light Distribution

- General info
- Technical Info
- Photometric Data
- Files
AMBRO 01-P LED 5700LM 52W 740 OP
Mounting type: On poles
Type of Equipment: Adjustable, Eco-Friendly Products, Electronic driver, High-Performance
Light Distribution: Direct distribution
Lamp Type: LED module
Light Power: From 20 to 100
Number of Lamps: LED Module
Protection Rating: IP66
Tip produs |
D [mm] |
h [mm] |
m [mm] |
AMBRO 01 LED |
Ф440 |
543 |
Фexterior 48–60 |
Technical Specifications
- Power Supply Voltage: 230V/50Hz
- Ambient Temperature Range: -40˚C to +50˚C
- Relative Humidity: Up to 80% at +20˚C
- Shock Resistance: 1000 ±10 shocks, 10g acceleration, impulse duration: 16ms, compliant with SR EN 60068-2-29
- Mechanical Impact Resistance: IK10
- Radio Interference Levels: Does not exceed the limits specified in SR EN 55015+A1
- Standards Compliance for Lighting Fixtures: SR EN 60598-1, SR EN 60598-2-1
Optional Features
- Available in other RAL colors
- Version equipped with a standardized Zhaga Socket for remote control and DALI2 flux regulation (allows dimming in 1% to 90% steps)
Installation
- Mounted on poles with diameters Ø48… Ø60mm, secured with six screws
Compliance with European Directives
- Low Voltage Directive
- Electromagnetic Compatibility Directive
- RoHS Directive
- WEEE Directive
Light Distribution

- General info
- Technical Info
- Photometric Data
- Files
AMBRO 01 LED 3500LM 23W 740 TP3
Mounting type: On poles
Type of Equipment: Adjustable, Eco-Friendly Products, Electronic driver, High-Performance
Light Distribution: Direct distribution
Lamp Type: LED module
Light Power: From 20 to 100
Number of Lamps: LED Module
Protection Rating: IP66
Tip produs |
D [mm] |
h [mm] |
m [mm] |
AMBRO 01 LED |
Ф282 |
542 |
Фexterior 48–60 |
Technical Specifications
- Power Supply Voltage: 230V/50Hz
- Ambient Temperature Range: -40˚C to +50˚C
- Relative Humidity: Up to 80% at +20˚C
- Shock Resistance: 1000 ±10 shocks, 10g acceleration, impulse duration: 16ms, compliant with SR EN 60068-2-29
- Mechanical Impact Resistance: IK10
- Radio Disturbance Levels: Compliant with SR EN 55015+A1
- Standards for Lighting Fixtures: SR EN 60598-1, SR EN 60598-2-1
Options Available Upon Request
- Other colors from the RAL palette
- Version equipped with a standardized Zhaga Socket connector for remote management control and DALI2 dimming functionality (step dimming from 1% to 90%)
Installation
- Mounted on poles with a diameter of Ø48… Ø60mm, secured with six screws.
Compliance with European Directives
- Low Voltage Directive
- Electromagnetic Compatibility Directive
- RoHS Directive
- WEEE Directive
Light Distribution

- General info
- Technical Info
- Photometric Data
- Files
AMBRO 01 LED 2300LM 23W 740 OP
Mounting type: On poles
Type of Equipment: Adjustable, Eco-Friendly Products, Electronic driver, High-Performance
Light Distribution: Direct distribution
Lamp Type: LED module
Light Power: From 20 to 100
Number of Lamps: LED Module
Protection Rating: IP66
Tip produs |
D [mm] |
h [mm] |
m [mm] |
AMBRO 01 LED |
Ф282 |
542 |
Фexterior 48–60 |
Technical Specifications
- Power Supply Voltage: 230V/50Hz
- Ambient Temperature Range: -40˚C to +50˚C
- Relative Humidity: Up to 80% at +20˚C
- Shock Resistance: 1000 ±10 shocks, 10g acceleration, impulse duration: 16ms, compliant with SR EN 60068-2-29
- Mechanical Impact Resistance: IK10
- Radio Interference Level: Within limits set by SR EN 55015+A1
- Standards Compliance: SR EN 60598-1, SR EN 60598-2-1
Options Available Upon Request
- Other colors from the RAL palette
- Variant equipped with a standardized Zhaga Socket connector for remote management control and DALI2 dimming functionality (step dimming from 1% to 90%)
Installation
- Mounted on poles with Ø48… Ø60mm compatibility, secured with six screws.
Compliance with European Directives
- Low Voltage Directive
- Electromagnetic Compatibility Directive
- RoHS Directive
- WEEE Directive
Light Distribution
