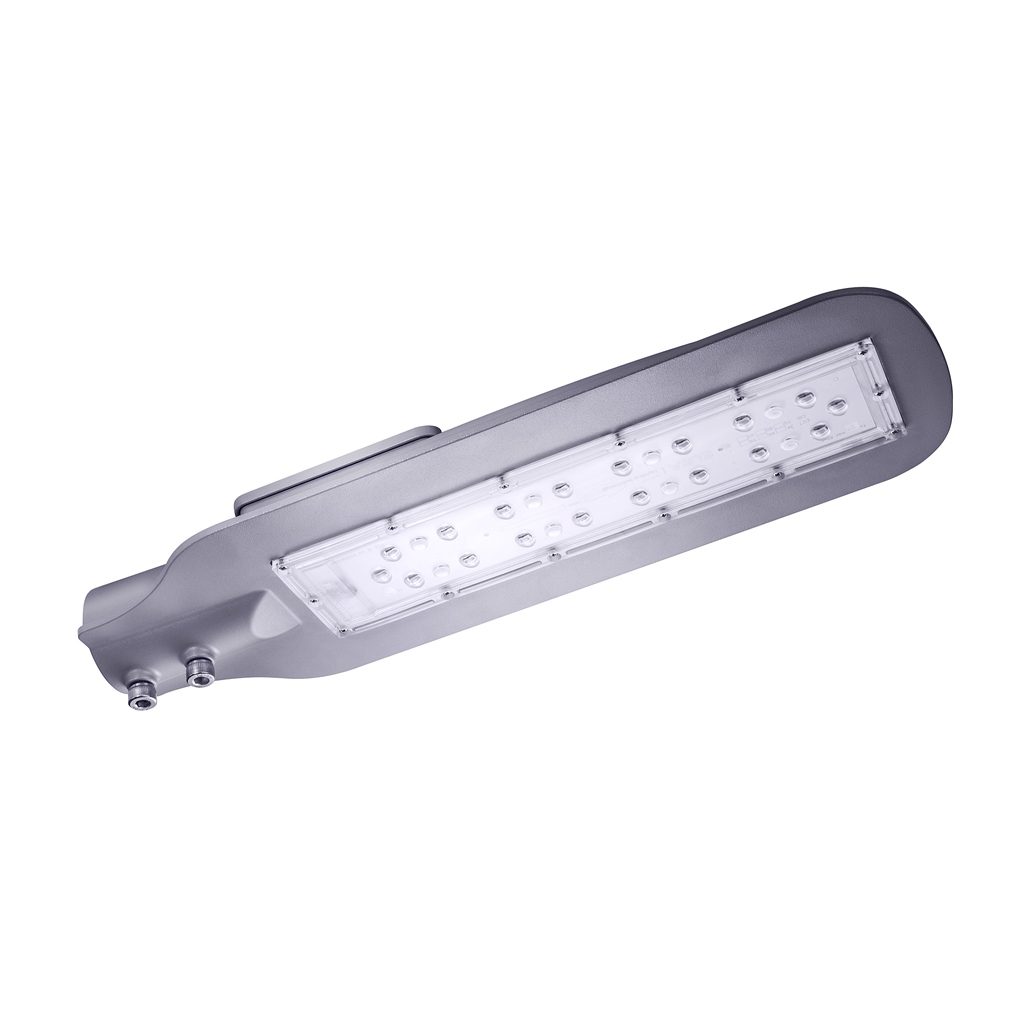

BUTTERFLY-01 LED

The BUTTERFLY lighting fixture family represents the solution to the challenges faced by municipal authorities – ensuring people’s safety while simultaneously saving energy and reducing maintenance costs.

BUTTERFLY combines a distinct design with high-quality lighting, seamlessly integrating into urban architecture. BUTTERFLY is a modern lighting fixture for street lighting, featuring the latest light sources with extended lifespan, equipped with high-performance LED modules. It does not require interventions for light source replacement, and the metal housing ensures recyclability. The arm-mounted or suspended installation and dimensional variants allow for flexible placement.

Add to list

Filtrare

Models:

Product code	35617326
Nominal Voltage [V]	230
Active Power [W]	14.4
Power Factor	≥0.9
Protection Class Against Electric Shock	I
IK	IK09
Weight [Kg]	1.3
Initial total net flux[lm]	1876
Net Luminous Efficacy [lm/W]	130

Tip produs	L [mm]	l [mm]	h [mm]	m [mm]
BUTTERFLY-01-18LED	395	135	56	Ф35 – Ф42mm

Product code	35617334
Nominal Voltage [V]	230
Active Power [W]	20
Power Factor	≥0.9
Protection Class Against Electric Shock	I
IK	IK09
Weight [Kg]	1.3
Initial total net flux[lm]	2480
Net Luminous Efficacy [lm/W]	124

Tip produs	L [mm]	l [mm]	h [mm]	m [mm]
BUTTERFLY-01-18LED	395	135	56	Ф35 – Ф42mm

Description

Painted aluminum housing.
Pole mounting system.
The optical system is designed to meet the requirements of the SR EN 13201 standard for street lighting, incorporating high-power LEDs with a flow orientation system specialized for road lighting.
LED driver included in the product, manufactured according to specific regulations.
Overload Protection.
Under Voltage Protection.
Over-temperature Protection: if the driver’s operating temperature is exceeded, the product will stop until it returns to normal temperature.
Short Circuit Protection: In case of a short circuit on the LED module, the driver will stop. After the cause of the short circuit is eliminated, the driver will restart and operate at normal parameters.
Surge Protection against lightning strikes: 10kV LNG.
Color: Gray.

Field of Use

Street lighting for local and secondary roads, with lighting classes M4, ME5, ME6, S1÷S6, according to SR EN 13201.
Residential lighting for alleys, yards, sidewalks, parks, pedestrian crossings, parking areas, garage zones, etc.

Light Source Used

Medium-power LEDs, with an optical system specialized for street and residential lighting, neutral-white color temperature (4000K) CRI≥70 or CRI≥80 with a long lifespan at Ta=25ºC:
- L70B10 121,000 hours,
- L80B10 >75,000 hours,
- L90B10 >35,000 hours,
- L70B50 >140,000 hours,
- L80B50 >87,000 hours,
- L90B50 >40,000 hours.
The LED system included in the product replaces/is equivalent to the following lamps:
- BUTTERFLY-01 18LED: with mercury HME 80W, compact fluhoursscent TC-L 24W,
- BUTTERFLY-02 48LED: with mercury HME 125W, sodium HST 50W/70W HSE 50/70W, metal halide HIT 50W, compact fluhoursscent TC-L 36W/40W.

Advantages

A modern lighting fixture with LED light sources.
Low energy consumption.
Extended lifespan.
Environmentally friendly.
Ideal for replacing street lighting fixtures with compact fluhoursscent lamps, sodium lamps, or metal halide lamps.
Reduced maintenance costs.
No need for interventions to replace light sources during operation.
