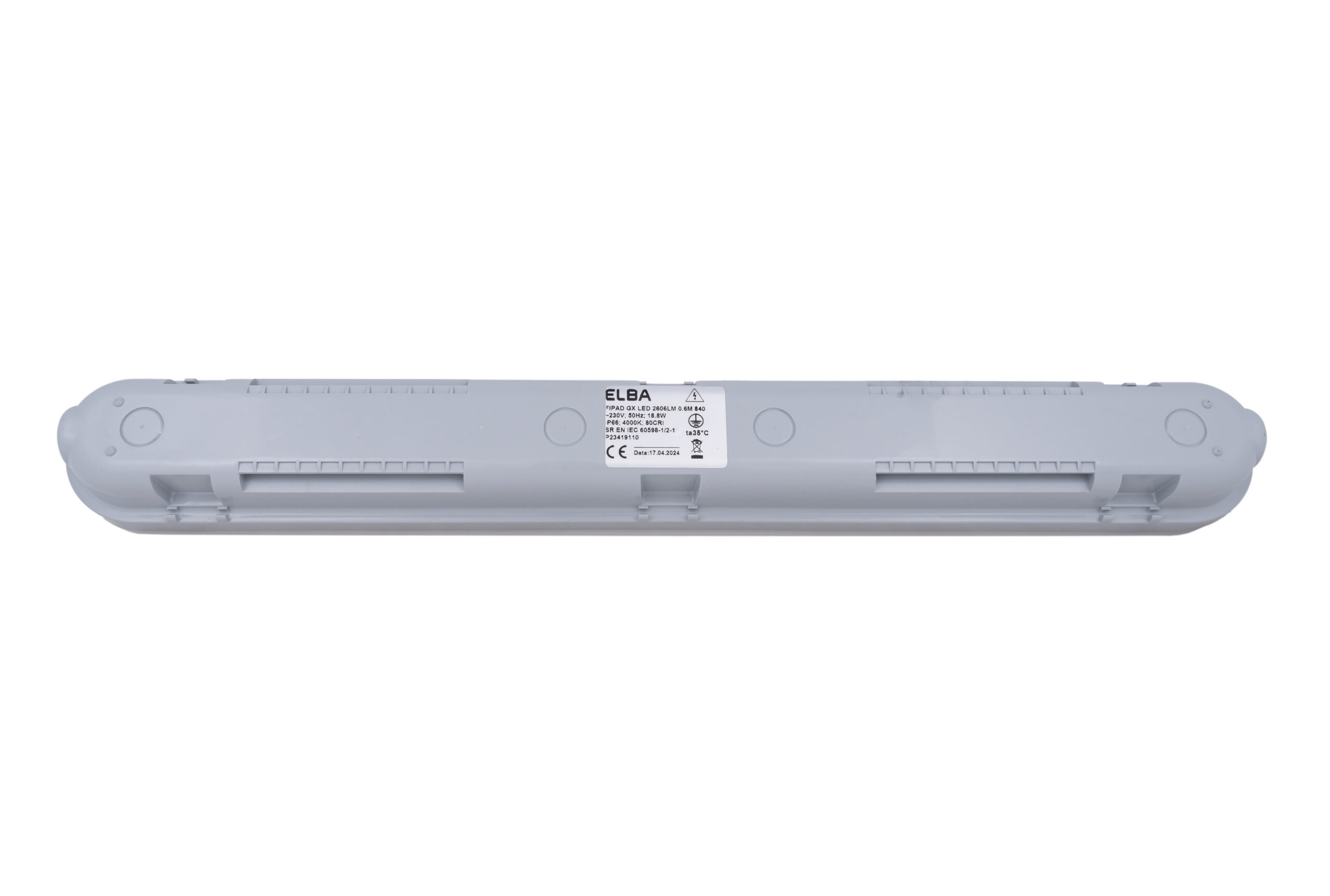

FIPAD GX LED

The new FIPAD-GX LED, with a polycarbonate diffuser, is a sealed luminaire ideal for use in harsh
environments requiring high protection against water vapors and dust.

The opal diffuser ensures visual comfort and high-quality light.
Equipped with medium-power LED modules, the FIPAD-GX LED, offers both low energy consumption
and reduced maintenance costs, providing the possibility to replace fluhoursscent solutions without
compromising ligh color.
Compact and economical design ensures perfect integration with the surrounding environment.
The IP66 protection of the FIPAD-GX LED luminaire is ensured by sealing gaskets and polycarbonate or
stainless-steel clips, making it suitable for humid environments such as industrial areas, warehouses,
garages, and sports halls.

Add to list

Filtrare

Models:

General info
Technical Info
Photometric Data
Files

FIPAD GX LED 0.6M IP66 840

Mounting type: Surface-mounted, Surface-mounted on the ceiling, Suspended

Type of Equipment: Eco-Friendly Products, Electronic Ballast, High-Performance

Light Distribution: Direct distribution, Symmetric distribution

Lamp Type: LED module

Light Power: From 10 to 100, From 10 to 150

Number of Lamps: LED Module

Protection Rating: IP66

Product code	23419110
Nominal voltage [V]	230
Active power [W]	21.2
Power factor	≥ 0.9
Protection class against electric shock	I
IK	IK08
Weight [Kg]	0.71
Initial total net flux[lm]	3063
Overall luminous efficacy [lm/W]	145

Product type	L(mm)	M (mm)	l (mm)	h(mm)
FIPAD GX LED 0.6M	610	300±75	78	76
FIPAD GX LED 1.2M	1210	840±75	78	76
FIPAD GX LED 1.5M	1505	1140±75	78	76

Description

- Opal polycarbonate diffuser for optimal light distribution;
- ABS housing;
- Steel mounting rail painted white, also functions as a heat sink for the LED module mounted in the diffuser;
- Polypropylene fasteners for the diffuser, which remain fixed to the body when the lighting fixture is opened;
- Polyurethane sealing gasket;
- Allowed cable diameter range: Φ8 ÷ Φ12 mm;
- Accessories for standard variants allowing inline mounting of the product, including cable entry gasket: PG13 nipple (1 piece), wall plugs for concrete (4 pieces), cable entry gasket (1 piece);
- Plastic clips to support the diffuser, facilitating installation;
- Equipped with a DIP switch for adjusting the light output in 4 steps, depending on the requirements;
- Electronic driver included in the product and manufactured in accordance with specific standars
-Manufacturer: Tridonic;
-Lifetime: 50.000 hours;
-ON-OFF cycles: 50.000;
- Maximum recommended for inline mounting of the products, depending on the safety fuse used and the wire thickness. Upon request, an inline installation kit can be ordered (including PG13 connector, cable, 3-pole terminal with screws). The cable exit can be made through a minimum of 5 zones, depending on the positioning of the power cables;
- Stainless steel fastening clips for surface mounting; the housing has a design that allows the fixture to be shifted to facilitate inline mounting;
- Color: grey.

Mounting

Surface mounted, on ceiling or wall with screws and stainless steel brackets included in the product;
Suspended with stainless steel hooks (ordered separately);
If the luminaires are to be regularly exposed to contact with chemical vapors in the surrounding atmosphere, please contact the manufacturer in advance.

Variants upon request

- With dimming capability via DALI or Casambi protocol;
- Equipped with a PMMA diffuser;
- Quick connectors mounted on the housing.

Download files

Data Sheet for FIPAD GX LED

Mounting instructions for FIPAD GX LED

LDT files for FIPAD GX LED

FIPAD GX LED Photos

General info
Technical Info
Photometric Data
Files

FIPAD GX LED 1.2M IP66 840

Mounting type: Surface-mounted, Surface-mounted on the ceiling, Suspended

Type of Equipment: Eco-Friendly Products, Electronic Ballast, High-Performance

Light Distribution: Direct distribution, Symmetric distribution

Lamp Type: LED module

Light Power: From 10 to 100, From 10 to 150

Number of Lamps: LED Module

Protection Rating: IP66

Product code	23419112
Nominal voltage [V]	230
Active power [W]	41
Power factor	≥ 0.95
Protection class against electric shock	I
IK	IK08
Weight [Kg]	1.26
Initial total net flux[lm]	6150
Overall luminous efficacy [lm/W]	150

Product type	L(mm)	M (mm)	l (mm)	h(mm)
FIPAD GX LED 0.6M	610	300±75	78	76
FIPAD GX LED 1.2M	1210	840±75	78	76
FIPAD GX LED 1.5M	1505	1140±75	78	76

Description

- Opal polycarbonate diffuser for optimal light distribution;
- ABS housing;
- Steel mounting rail painted white, also functions as a heat sink for the LED module mounted in the diffuser;
- Polypropylene fasteners for the diffuser, which remain fixed to the body when the lighting fixture is opened;
- Polyurethane sealing gasket;
- Allowed cable diameter range: Φ8 ÷ Φ12 mm;
- Accessories for standard variants allowing inline mounting of the product, including cable entry gasket: PG13 nipple (1 piece), wall plugs for concrete (4 pieces), cable entry gasket (1 piece);
- Plastic clips to support the diffuser, facilitating installation;
- Equipped with a DIP switch for adjusting the light output in 4 steps, depending on the requirements;
- Electronic driver included in the product and manufactured in accordance with specific standars
-Manufacturer: Tridonic;
-Lifetime: 50.000 hours;
-ON-OFF cycles: 50.000;
- Maximum recommended for inline mounting of the products, depending on the safety fuse used and the wire thickness. Upon request, an inline installation kit can be ordered (including PG13 connector, cable, 3-pole terminal with screws). The cable exit can be made through a minimum of 5 zones, depending on the positioning of the power cables;
- Stainless steel fastening clips for surface mounting; the housing has a design that allows the fixture to be shifted to facilitate inline mounting;
- Color: grey.

Mounting

Surface mounted, on ceiling or wall with screws and stainless steel brackets included in the product;
Suspended with stainless steel hooks (ordered separately);
If the luminaires are to be regularly exposed to contact with chemical vapors in the surrounding atmosphere, please contact the manufacturer in advance.

Variants upon request

- With dimming capability via DALI or Casambi protocol;
- Equipped with a PMMA diffuser;
- Quick connectors mounted on the housing.

Download files

Data Sheet for FIPAD GX LED

Mounting instructions for FIPAD GX LED

LDT files for FIPAD GX LED

FIPAD GX LED Photos

General info
Technical Info
Photometric Data
Files

FIPAD GX LED 1.5M IP66 840

Mounting type: Surface-mounted, Surface-mounted on the ceiling, Suspended

Type of Equipment: Eco-Friendly Products, Electronic Ballast, High-Performance

Light Distribution: Direct distribution, Symmetric distribution

Lamp Type: LED module

Light Power: From 10 to 100, From 10 to 150

Number of Lamps: LED Module

Protection Rating: IP66

Product code	23419115
Nominal voltage [V]	230
Active power [W]	52.3
Power factor	≥ 0.95
Protection class against electric shock	I
IK	IK08
Weight [Kg]	1.58
Initial total net flux[lm]	7200
Overall luminous efficacy [lm/W]	138

Product type	L(mm)	M (mm)	l (mm)	h(mm)
FIPAD GX LED 0.6M	610	300±75	78	76
FIPAD GX LED 1.2M	1210	840±75	78	76
FIPAD GX LED 1.5M	1505	1140±75	78	76

Description

- Opal polycarbonate diffuser for optimal light distribution;
- ABS housing;
- Steel mounting rail painted white, also functions as a heat sink for the LED module mounted in the diffuser;
- Polypropylene fasteners for the diffuser, which remain fixed to the body when the lighting fixture is opened;
- Polyurethane sealing gasket;
- Allowed cable diameter range: Φ8 ÷ Φ12 mm;
- Accessories for standard variants allowing inline mounting of the product, including cable entry gasket: PG13 nipple (1 piece), wall plugs for concrete (4 pieces), cable entry gasket (1 piece);
- Plastic clips to support the diffuser, facilitating installation;
- Equipped with a DIP switch for adjusting the light output in 4 steps, depending on the requirements;
- Electronic driver included in the product and manufactured in accordance with specific standars
-Manufacturer: Tridonic;
-Lifetime: 50.000 hours;
-ON-OFF cycles: 50.000;
- Maximum recommended for inline mounting of the products, depending on the safety fuse used and the wire thickness. Upon request, an inline installation kit can be ordered (including PG13 connector, cable, 3-pole terminal with screws). The cable exit can be made through a minimum of 5 zones, depending on the positioning of the power cables;
- Stainless steel fastening clips for surface mounting; the housing has a design that allows the fixture to be shifted to facilitate inline mounting;
- Color: grey.

Mounting

Surface mounted, on ceiling or wall with screws and stainless steel brackets included in the product;
Suspended with stainless steel hooks (ordered separately);
If the luminaires are to be regularly exposed to contact with chemical vapors in the surrounding atmosphere, please contact the manufacturer in advance.

Variants upon request

- With dimming capability via DALI or Casambi protocol;
- Equipped with a PMMA diffuser;
- Quick connectors mounted on the housing.

Download files

Data Sheet for FIPAD GX LED

Mounting instructions for FIPAD GX LED

LDT files for FIPAD GX LED

FIPAD GX LED Photos

Domain of Use

General interior lighting in humid environments with non-combustible dust: industrial halls, warehouses, sports halls, workshops. Covered outdoor areas (only under a roof, canopy, or dome to protect the lighting fixtures from sunlight): bus stations, waiting areas, garages, underground parking lots, subway tunnels, covered warehouses, corridors, staircases.

Light Source Used
High-power LEDs, neutral-white color temperature 4000K, CRI: ≥80, lifetime L90B50 >80.000 hours at ta = 25ºC.

Advantages
An economic, compact luminaire designed for use in harsh environments where robustness and performance are key requirements. It operates exclusively with LEDs, making it the best option for humid environments. Energy-efficient, easy to install and maintain. Complies with IP66 protection standards – providing protection against dust and water offering high impact resistance with IK08 rating. Reduced maintenance costs, with no need for interventions to replace light sources during operation.

Description

Opal polycarbonate diffuser for optimal light distribution;
ABS housing;
Steel mounting rail painted white, also functions as a heat sink for the LED module mounted in the diffuser;
Polypropylene fasteners for the diffuser, which remain fixed to the body when the lighting fixture is opened;
Polyurethane sealing gasket;
Allowed cable diameter range: Φ8 ÷ Φ12 mm;
Accessories for standard variants allowing inline mounting of the product, including cable entry gasket: PG13 nipple (1 piece), wall plugs for concrete (4 pieces), cable entry gasket (1 piece);
Plastic clips to support the diffuser, facilitating installation;
Equipped with a DIP switch for adjusting the light output in 4 steps, depending on the requirements;
Electronic driver included in the product and manufactured in accordance with specific standars

-Manufacturer: Tridonic;
-Lifetime: 50.000 hours;
-ON-OFF cycles: 50.000;

Maximum recommended for inline mounting of the products, depending on the safety fuse used and the wire thickness. Upon request, an inline installation kit can be ordered (including PG13 connector, cable, 3-pole terminal with screws). The cable exit can be made through a minimum of 5 zones, depending on the positioning of the power cables;
Stainless steel fastening clips for surface mounting; the housing has a design that allows the fixture to be shifted to facilitate inline mounting;
Color: grey.

Compliance

Low Voltage Directive.
Electromagnetic Compatibility Directive.
RoHS Directive.WEEE Directive
