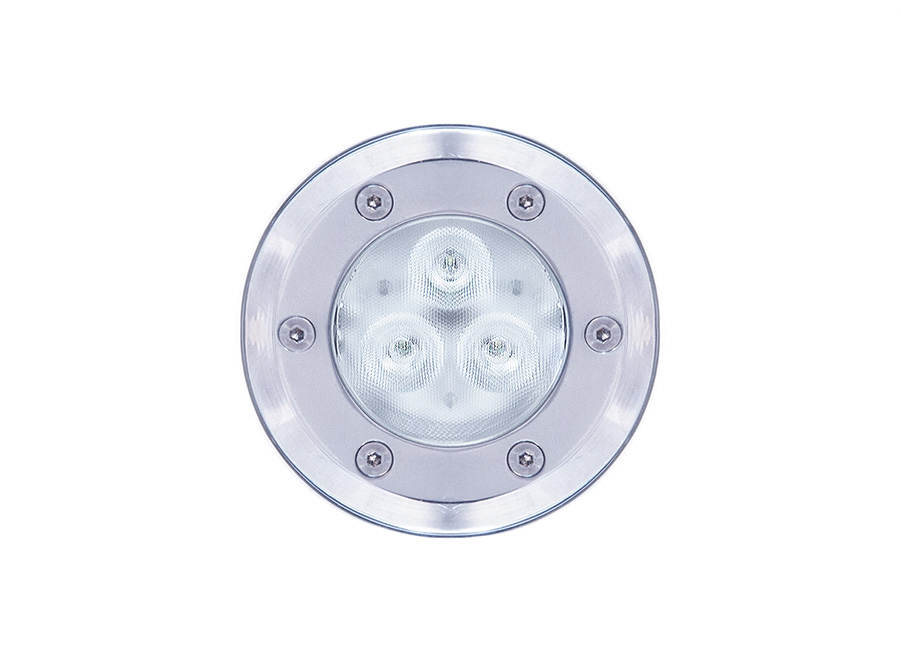

IMPACT-03 LED

IMPACT LED is a range of projectors with vertical distribution, designed for ambient lighting of architectural features or to highlight them with accent lighting.

Thanks to its recessed housing, this type of lighting fixture is discreet and has an elegant appearance during the day. This range has been designed to provide an optimal lighting effect from bottom to top – from high-power ambient lighting to mhours subtle accent effects.

Add to list

Filtrare

Models:

Product code	78351113
No. of lenses	1
Tensiune nom. [V]	24
Nominal power. [W]	3.5
class insulation	III
IK	IK09
Weight [Kg]	0,65
Gross total LED flux [lm]	340
Efficacy [lm/W]	97

Product code	78350010
No. of lenses	1
Tensiune nom. [V]	24
Nominal power. [W]	3.5
class insulation	III
IK	IK09
Weight [Kg]	0,70
Gross total LED flux [lm]	340
Efficacy [lm/W]	97

General info
Technical Info
Photometric Data
Files

IMPACT-03 3LED 12-24V 12º RGB

Mounting type: Projectors, Recessed in floor/ground

Type of Equipment: Eco-Friendly Products, Performant

Light Distribution: Direct distribution

Lamp Type: LED module

Light Power: From 1 to 20

Number of Lamps: 1, LED Module

Protection Rating: IP67

Product code	7830015
No. of lenses	1
Tensiune nom. [V]	12
Nominal power. [W]	3.5
class insulation	III
IK	IK09
Weight [Kg]	0,70
Gross total LED flux [lm]	dinamic RGB
Efficacy [lm/W]	dinamic RGB

Tip produs	D (mm)	h (mm)
IMPACT-03 3 LED	ø92	154

Montaj

Produsul se montează încastrat în sol, conform instrucţiunilor de montare exploatare.
Rezistenţa la încărcare statică: 350kg,
Temperatura maximă pe suprafața sticlei: 45ºC

Caracteristici tehnice

Tensiunea de alimentare: 230V/50Hz sau 12V÷24V
Domeniu de temperatură ambientală: -20˚C +35˚C
Rezistenţa la impact mecanic conform SR EN 50102: IK09.
Umiditate relativă până la 80% la temperatura de + 20˚C.
Ceaţă salină: 96 de hours conform SR EN 60068-2-11.
Temperatura maximă pe suprafața sticlei: 45ºC
Rezistenţa la încărcare statică: 350kg, conform SR EN 60598-2-13
Rezistenţa la zdruncinături: 1000 ±10 zdruncinături, acceleraţia de 10g, durata impulsului:16ms, conform SR EN 60068-2-29.
Corpul de iluminat este realizat în conformitate cu cerințele standardelor SR EN 60598-1, SR EN 60598-2-13, SR EN 62031.

Conformitate cu Directivele Europene

Directiva de Joasă Tensiune
Directiva de Compatibilitate Electromagnetică
Directiva RoHs. Directiva DEEE

Date fotometrie IMPACT-03-3LED

Photometric data IMPACT-03 3LED 58°
UTE: 0.78A
CIE:94 99 100 100 78
Luminous intensity distribution curve [Cd]

Photometric data IMPACT-03 3LED34°
UTE: 0.74A
CIE: 100 100 100 97 75
Luminous intensity distribution curve [Cd]

Photometric data IMPACT-03 3LED16°
UTE: 0.77A
CIE: 92 99 100 99 80
Luminous intensity distribution curve [Cd]

Download files

Technical data sheet IMPACT-03 LED

Photos IMPACT-03 LED

Product code	78350017
No. of lenses	1
Tensiune nom. [V]	230
Nominal power. [W]	5
class insulation	I
IK	IK09
Weight [Kg]	0,80
Gross total LED flux [lm]	340
Efficacy [lm/W]	97

The unique collimating optical system provides a uniform light flux.

Description
The aluminum housing contains the electronic assembly and the LED board, as well as the cable gland.
The secure glass diffuser is fixed to the aluminum body using a protective gasket, a stainless steel flange, and 6 M4x12 screws.
Depending on the lenses used, wider or narrower light flux distributions can be achieved:

For the version with a single composite lens: 12°, 19°, 34°, 58°
For the version with 3 individual lenses: 16°, 24°, 41°, 46°, 84°, 18°x48°, 48°x18°

For installation in asphalt, a 90mm PVC tube is mounted onto the lighting fixture.
For the 230V version: The electronic driver is included in the product and complies with relevant standards.
Color: Grey, metallic (stainless steel frame).

Area of Use
Lighting for pedestrian traffic areas. Outdoor architectural lighting: building facades, gardens, parks, statues. Architectural accent lighting.

Light Source Used
LEDs with cool-white color 6500K, CRI:70, with a lifespan of L70B50 for 50,000 hours at Ta=25°C.
Upon customer request, LEDs in other colors can be used: warm-white 2700-3700K (CRI:80), neutral-white 3700-5000K (CRI:75), blue, green, red, yellow.
LEDs in red, green, and blue for the RGB version with dynamic lighting.

Variants upon request
For the 12V÷24V version: AC 230V / DC 24V power supply for 6 or 12 products, ordered separately.
The product can be made in RGB.

Advantages

High-quality light
Very low consumption
Long lifespan
High resistance to mechanical impact
No need for intervention to replace light sources during operation

Compliance

Request offer

Send the request and an ELBA consultant will return with a personalized offer

Add to list

Request offer

Send your request, and an ELBA consultant will get back to you with details.

Add to list
